IDTQS3VH244

2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

Renesas

IDTQS3VH244 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Low RON - 4Ω typical

* Flat RON characteristics over operating ran

IDTQS3VH244 General Description

The QS3VH244 HotSwitch is a high bandwidth, 8-bit bus switch. The QS3VH244 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of the LVTTL-compatible xG signal for bidirectional data flow with no added delay or .

IDTQS3VH244 Datasheet (416.74 KB)

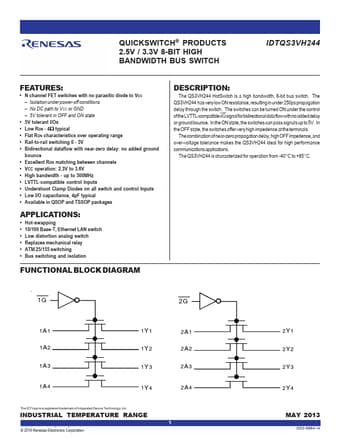

IDTQS3VH244 Datasheet Preview — Preview of IDTQS3VH244 PDF

Datasheet Details

Part number:

IDTQS3VH244

Manufacturer:

Renesas ↗

File Size:

416.74 KB

Description:

2.5v / 3.3v 8-bit high bandwidth bus switch.
IDTQS3VH244 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH QUICKSWITCH® PRODUCTS 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANG.
