IDTQS3VH253

2.5V / 3.3V DUAL 4:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH

Renesas

IDTQS3VH253 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Low RON - 4Ω typical

* Flat RON characteristics over operating ran

IDTQS3VH253 General Description

The QS3VH253 HotSwitch Dual 4:1 multiplexer/demultiplexer is a high bandwidth bus switch. The QS3VH253 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The Select (Sx) inputs control the data flow. The multiplexers/demultiplexers are enabled when the Enable.

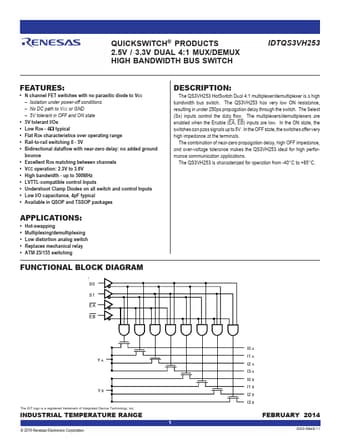

IDTQS3VH253 Datasheet (412.69 KB)

IDTQS3VH253 Datasheet Preview — Preview of IDTQS3VH253 PDF

Datasheet Details

Part number:

IDTQS3VH253

Manufacturer:

Renesas ↗

File Size:

412.69 KB

Description:

2.5v / 3.3v dual 4:1 mux/demux high bandwidth bus switch.
IDTQS3VH253 2.5V / 3.3V DUAL 4:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V DUAL 4:1 MUX/DEM.
