IDTQS3VH257 Datasheet - Renesas

IDTQS3VH257 2.5V/3.3V QUAD 2:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH

The QS3VH257 HotSwitch Quad 2:1 multiplexer/demultiplexer is a high bandwidth bus switch. The QS3VH257 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The Select (S) input controls the data flow. The multiplexers/demultiplexers are enabled when the Enable .

IDTQS3VH257 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Low RON - 4Ω typical

* Flat RON characteristics over operating ran

IDTQS3VH257 Datasheet (410.25 KB)

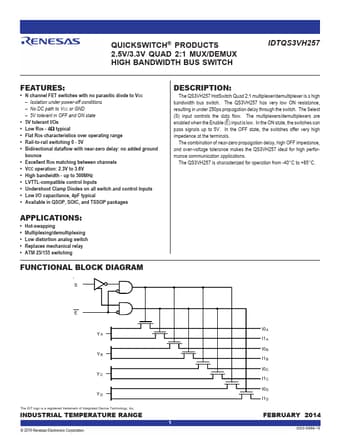

Preview of IDTQS3VH257 PDF
IDTQS3VH257 Datasheet Preview Page 2 IDTQS3VH257 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS3VH257

Manufacturer:

Renesas ↗

File Size:

410.25 KB

Description:

2.5v/3.3v quad 2:1 mux/demux high bandwidth bus switch.
