ISL22416 Datasheet - Renesas

ISL22416 Single Digitally Controlled Potentiometer

DATASHEET NOT RECOMMENDED FOR NEW DESIGNS POSSIBLE SUBSTITUTE PRODUCT ISL22416 ISL22316 FN6227 Single Digitally Controlled Potentiometer (XDCP™) Low Noise, Low Power, SPI® Rev 2.00 Bus, 128 Taps September 9, 2009 The ISL22416 integrates a single digitally controlled potentiometer (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The position of the wiper .

ISL22416 Datasheet (859.20 KB)

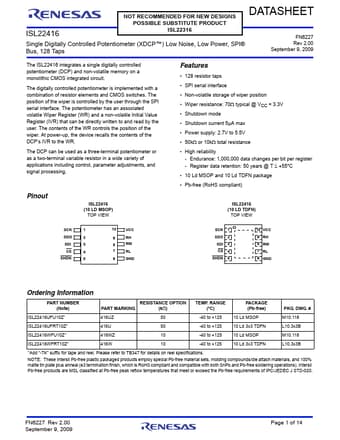

Preview of ISL22416 PDF

Datasheet Details

Part number:

ISL22416

Manufacturer:

Renesas ↗

File Size:

859.20 KB

Description:

Single digitally controlled potentiometer.
