ISL22419 Datasheet, Potentiometer, Renesas

ISL22419 Features

  • Potentiometer
  • 128 resistor taps
  • SPI serial interface
  • Non-volatile storage of wiper position
  • Wiper resistance: 70 typical @ 3.3V
  • Shutdown mode
  • <

PDF File Details

Part number:

ISL22419

Manufacturer:

Renesas ↗

File Size:

739.58kb

Download:

📄 Datasheet

Description:

Single digitally controlled potentiometer. MSOP PIN 1 2 3 4 5 6 7 8 SYMBOL SCK SDO SDI CS GND SHDN RW VCC GND DESCRIPTION SPI interface clock input Open Drain Data Output of

Datasheet Preview: ISL22419 📥 Download PDF (739.58kb)

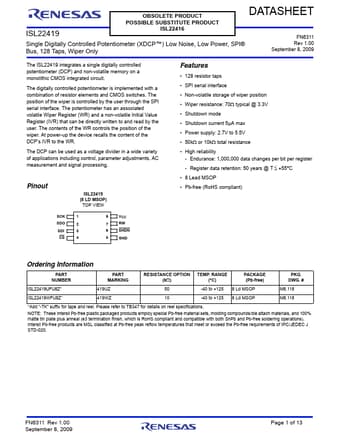

Page 2 of ISL22419 Page 3 of ISL22419

ISL22419 Application

  • Applications including control, parameter adjustments, AC measurement and signal processing. Pinout SCK SDO SDI CS ISL22419 (8 LD MSOP) TOP VIEW
