ISL22446 Datasheet - Renesas

ISL22446 Quad Digitally Controlled Potentiometer

NOT RECOMMENDED FOR NEW DESIGNS DATASHEET RECOMMENDED REPLACEMENT PART ISL22446 ISL22424 FN6181 Quad Digitally Controlled Potentiometer (XDCP™) Low Noise, Low Power, SPI™ Rev 2.00 Bus, 128 Taps September 9, 2009 The ISL22446 integrates four digitally controlled potentiometers (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers .

ISL22446 Datasheet (900.69 KB)

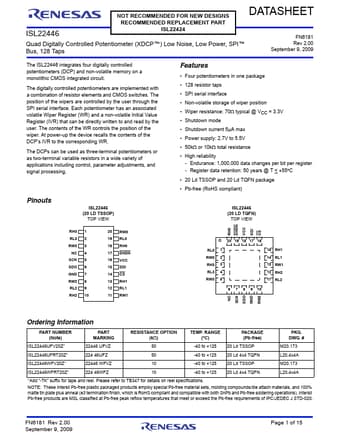

Preview of ISL22446 PDF

Datasheet Details

Part number:

ISL22446

Manufacturer:

Renesas ↗

File Size:

900.69 KB

Description:

Quad digitally controlled potentiometer.
