ISL22449 Datasheet - Renesas

ISL22449 Quad Digitally Controlled Potentiometer

ISL22449 OBSOLETE PRODUCT POSSIBLE SUBSTITUTE PRODUCT ISL22446 Quad Digitally Controlled Potentiometer (XDCP™) Low Noise, Low Power, SPI® Bus, 128 Taps, Wiper Only DATASHEET FN6333 Rev 3.00 July 17, 2009 The ISL22449 integrates four digitally controlled potentiometers (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled.

ISL22449 Datasheet (739.55 KB)

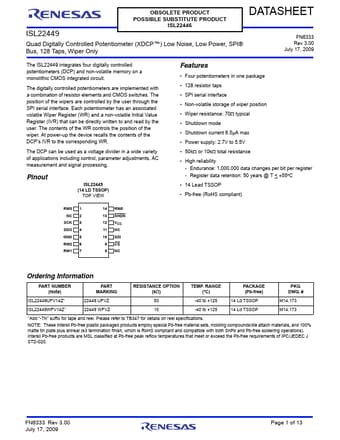

Preview of ISL22449 PDF

Datasheet Details

Part number:

ISL22449

Manufacturer:

Renesas ↗

File Size:

739.55 KB

Description:

Quad digitally controlled potentiometer.
