ISL23418

Low Voltage Digitally Controlled Potentiometer

ISL23418 Features

* 128 Resistor Taps

* SPI Serial Interface - No Additional Level Translator for Low Bus Supply - Daisy Chaining of Multiple DCP

* Wiper Resistance: 70 Typical @ VCC = 3.3V

* Shutdown Mode: Forces DCP into End-to-end Open Circuit; RW Shorted to RL Internally

ISL23418 General Description

MSOP 1 µTQFN 10 21 32 43 54 65 76 87 98 10 9 SYMBOL DESCRIPTION VLOGIC SPI bus/logic supply; range 1.2V to 5.5V SCK Logic pin: serial bus clock input SDO Logic pin: serial bus data output (configurable) SDI Logic pin: serial bus data input CS Logic pin: active low Chip Select RL DCP “lo.

ISL23418 Datasheet (1.17 MB)

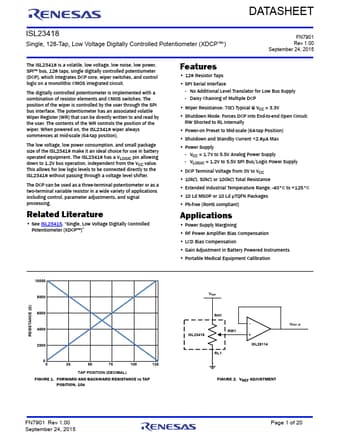

Preview of ISL23418 PDF

Datasheet Details

Part number:

ISL23418

Manufacturer:

Renesas ↗

File Size:

1.17 MB

Description:

Low voltage digitally controlled potentiometer.
DATASHEET ISL23418 Single, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7901 Rev 1.00 September 24, 2015 The ISL23418 is a vol.
