ISL23415

Low Voltage Digitally Controlled Potentiometer

ISL23415 Features

* 256 resistor taps

* SPI serial interface - No additional level translator for low bus supply - Daisy Chaining of multiple DCP

* Power supply - VCC = 1.7V to 5.5V analog power supply - VLOGIC = 1.2V to 5.5V SPI bus/logic power supply

* Wiper resistance: 70 typical @

ISL23415 General Description

MSOP 1 µTQFN 10 2 1 3 2 4 3 5 4 6 5 7 6 8 7 9 8 10 9 SYMBOL DESCRIPTION VLOGIC SPI bus/logic supply. Range 1.2V to 5.5V SCK Logic Pin - Serial bus clock input SDO Logic Pin - Serial bus data output (configurable) SDI Logic Pin - Serial bus data input CS Logic Pin - Active.

ISL23415 Datasheet (1.07 MB)

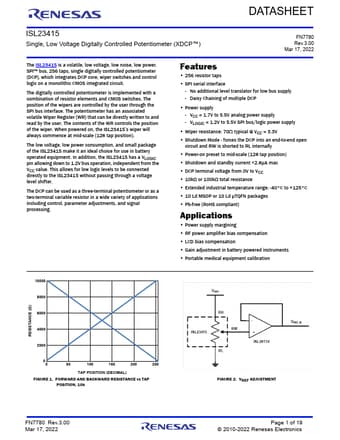

Preview of ISL23415 PDF

Datasheet Details

Part number:

ISL23415

Manufacturer:

Renesas ↗

File Size:

1.07 MB

Description:

Low voltage digitally controlled potentiometer.
DATASHEET ISL23415 Single, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7780 Rev.3.00 Mar 17, 2022 The ISL23415 is a volatile, low volt.
