ISL29120

Color Light Sensor

Renesas

ISL29120 Features

* 70µA Operating Current, 0.3µA Shutdown Current

* I2C (SMBus Compatible) Output

* Programmable 4, 8, 12 or 16-bits ADC Resolution

* Programmable Interrupt Windows

* Two Optical Sensitivity Ranges

* 2.25 to 3.63V Operating Power Supply

* 1.7V t

ISL29120 General Description

PIN NUMBER PIN NAME DESCRIPTION 0 PAD Exposed thermal pad, connected to ground. 1 VDD Positive power supply, 2.25V to 3.63V. 2 GND Ground pin. 3 REXT Connect to ground through a 499kΩ resistor. 4 INT Interrupt Output, Open Drain 5 SCL I2C serial clock Input SCL and SDA are Open Drain. Pull.

ISL29120 Datasheet (452.65 KB)

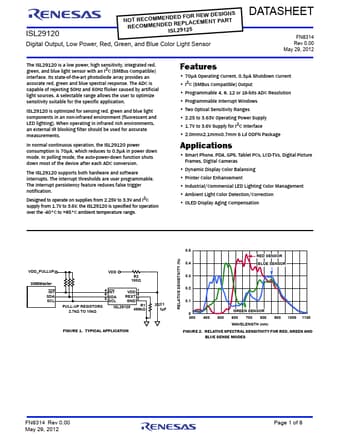

ISL29120 Datasheet Preview — Preview of ISL29120 PDF

Datasheet Details

Part number:

ISL29120

Manufacturer:

Renesas ↗

File Size:

452.65 KB

Description:

Color light sensor.
ISL29120 NORETCROEMCMOMENMDEENDIDSLER2DE9PF1L2OA5RCNEEMWENDTEPSAIGRNTS Digital Output, Low Power, Red, Green, and Blue Color Light Sensor DATASHEET.
