Low power ambient light and proximity sensor.

ISL29147, Low Power Ambient Light and Proximity Sensor

PIN# 1 2 3 4 5 6 7 8 NAME LEDIRDR INT SDA VDD SCL GND LED+ DESCRIPTION Cathode of IR LED.

IR-LED Driver Sink - Connect to IR LED Cathode.

Active Low, Open-Drain Output.

I2C Serial Data Input/Output.

Positive supply: 2.25V to 3.63V.

I2C Serial Clock Input.

Ground.

Anode of IR LED.

Ordering Inform

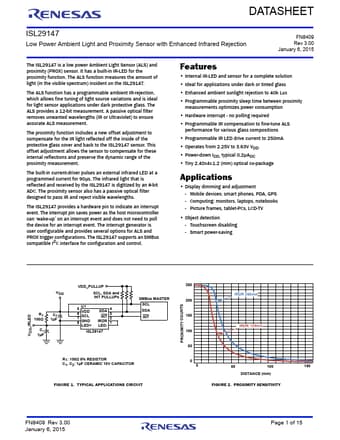

DATASHEET ISL29147 Low Power Ambient Light and Proximity Sensor with Enhanced Infrared Rejection FN8409 Rev 3.00 January 6, 2015 The ISL29147 is a low power Ambient Light Sensor (ALS) and proximity (PROX) sensor.

It has a built-in IR-LED for the proximity function.

The ALS function measures the amount of light (in the visible spectrum) incident on the ISL29147.

The ALS function has a programmable ambient IR-rejection, which allows fine tuning of light source variations and is ideal for light

ISL29147 Features

* Internal IR-LED and sensor for a complete solution

* Ideal for applications under dark or tinted glass

* Enhanced ambient sunlight rejection to 40k Lux

* Programmable proximity sleep time between proximity measurements optimizes power consumption

* Hardware
