ISL29125

Digital Red Green and Blue Color Light Sensor

Renesas

ISL29125 Features

* 56µA operating current, 0.5µA shutdown current

* Selectable range (Via I2C)

* I2C (SMBus compatible) output

* ADC resolution 16 bits

* Programmable interrupt windows

* Two optical sensitivity ranges - Range 0 = 5.7m lux to 375 lux - Range 1 = 0.152 l

ISL29125 General Description

PIN NUMBER 1 2 3 4 5 6 PIN NAME VDD NC GND SDA INT SCL DESCRIPTION Positive supply No Connect Ground I2C serial data Interrupt; LOW for interrupt alarming. INT pin is an open drain. INT remains asserted until the interrupt status bit is reset. INT also becomes an input when it is set in SYNC mod.

ISL29125 Datasheet (780.73 KB)

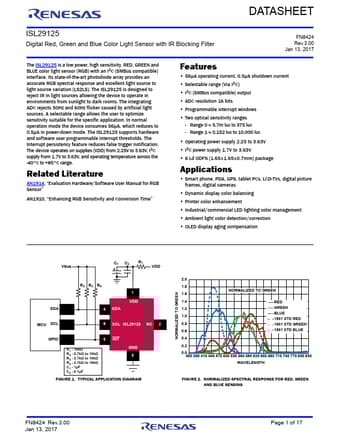

ISL29125 Datasheet Preview — Preview of ISL29125 PDF

Datasheet Details

Part number:

ISL29125

Manufacturer:

Renesas ↗

File Size:

780.73 KB

Description:

Digital red green and blue color light sensor.
DATASHEET ISL29125 Digital Red, Green and Blue Color Light Sensor with IR Blocking Filter FN8424 Rev.3.00 Jan 13, 2017 The ISL29125 is a low power,.
