ISL3156E, ISL3150E RS-485/RS-422 Transceivers

Renesas

Description

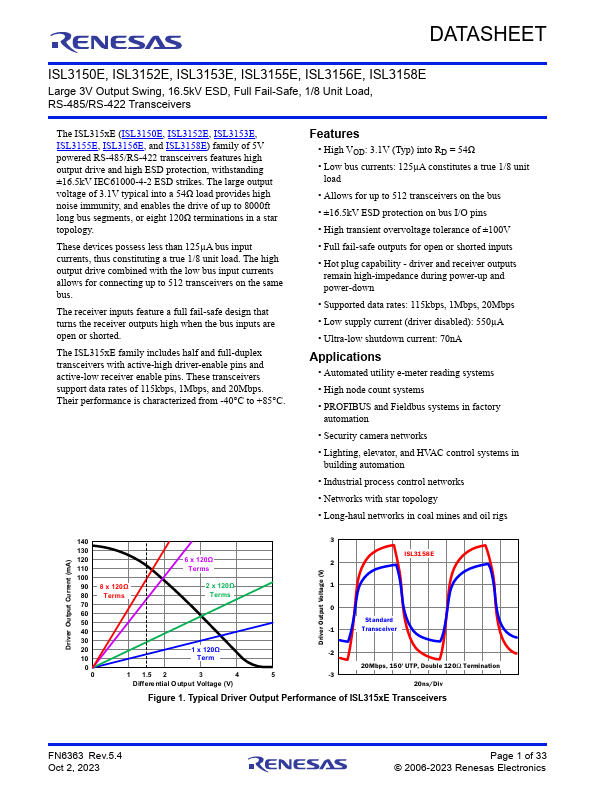

DATASHEET ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, ISL3158E Large 3V Output Swing, 16.5kV ESD, Full Fail-Safe, 1/8 Unit Load, RS-485/RS-422 .

📥 Download Datasheet

ISL3156E Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL3156E, ISL3150E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ISL3156E, ISL3150E
Manufacturer: Renesas ↗
File Size: 1.51 MB
Datasheet: ISL3150E-Renesas.pdf
Description: RS-485/RS-422 Transceivers
Note: This datasheet PDF includes multiple part numbers: ISL3156E, ISL3150E.
Please refer to the document for exact specifications by model.

Features

* high output drive and high ESD protection, withstanding ±16.5kV IEC61000-4-2 ESD strikes. The large output voltage of 3.1V typical into a 54Ω load provides high noise immunity, and enables the drive of up to 8000ft long bus segments, or eight 120Ω terminations in a star topology. These devices posse

Applications

* Automated utility e-meter reading systems
* High node count systems
* PROFIBUS and Fieldbus systems in factory automation
* Security camera networks
* Lighting, elevator, and HVAC control systems in building automation
* Industrial process control ne
