ISL43L840 Datasheet - Renesas

ISL43L840 - Dual 4 to 1 Analog Multiplexer

DATASHEET ISL43L840 Ultra Low ON-Resistance, Low-Voltage, Single Supply, Dual 4 to 1 Analog Multiplexer FN6096 Rev 1.00 October 12, 2004 The Intersil ISL43L840 device is a precision, bidirectional, analog switch configured as a dual 4-channel multiplexer/demultiplexer, designed to operate from a single +1.6V to +3.6V supply.

ON resistance is 0.5 with a +3V supply and 0.62 with a single +1.8V supply.

Each switch can handle rail to rail analog signals.

The off-leakage current is only 4nA max

ISL43L840 Features

* AT A GLANCE ISL43L840 Configuration Dual 4:1 Mux 3V RON 3V tRANS 1.8V RON 1.8V tRANS Packages 0.5 19ns 0.62 24ns 16 Ld TSSOP, 16 Ld 3x3 QFN Related Literature

* Techni

ISL43L840-Renesas.pdf

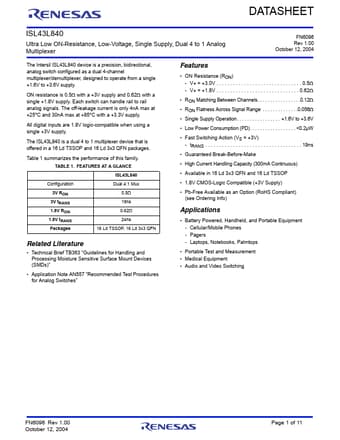

Preview of ISL43L840 PDF
ISL43L840 Datasheet Preview Page 2 ISL43L840 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL43L840

Manufacturer:

Renesas ↗

File Size:

557.74 KB

Description:

Dual 4 to 1 analog multiplexer.
