ISL43L841 Datasheet - Renesas

ISL43L841 Differential 4 to 1 Analog Multiplexer

DATASHEET ISL43L841 Ultra Low ON-Resistance, Low-Voltage, Single Supply, Differential 4 to 1 Analog Multiplexer FN6212 Rev 1.00 June 30, 2006 The Intersil ISL43L841 device contains precision, bidirectional, analog switches configured as a differential 4-channel multiplexer/demultiplexer. It is designed to operate from a single +1.65V to +4.5V supply. The device has an inhibit pin to simultaneously open all signal paths. With a supply voltage of 4.2V and logic high voltage of 2.85V at the logi.

ISL43L841 Datasheet (615.27 KB)

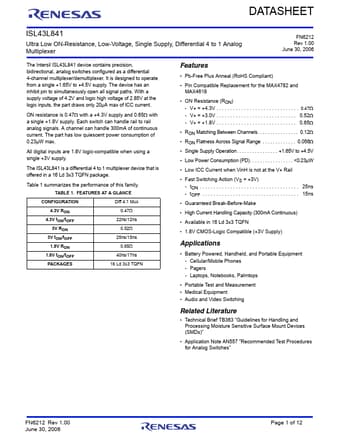

Preview of ISL43L841 PDF
ISL43L841 Datasheet Preview Page 2 ISL43L841 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL43L841

Manufacturer:

Renesas ↗

File Size:

615.27 KB

Description:

Differential 4 to 1 analog multiplexer.
