ISL80111

Low Input Voltage NMOS LDOs

Renesas

ISL80111 Features

* Ultra low dropout: 75mV at 3A, (typical)

* Excellent VIN PSRR: 70dB at 1kHz (typical)

* ±1.6% assured VOUT accuracy for -40ºC < TJ < +125ºC

* Very fast load transient response

* Extensive protection and reporting features

* VIN range: 0.7V to 3.6V, V

ISL80111 General Description

VOUT Output voltage pin. Range 0.5V to 3.3V ADJ VBIAS ADJ pin for externally setting VOUT. Bias voltage pin for internal control circuits. Range 2.9V to 5.5V GND Ground pin PG VOUT in regulation signal. Logic low defines when VOUT is not in regulation. Range 0V to BIAS ENABLE VIN independe.

ISL80111 Datasheet (1.07 MB)

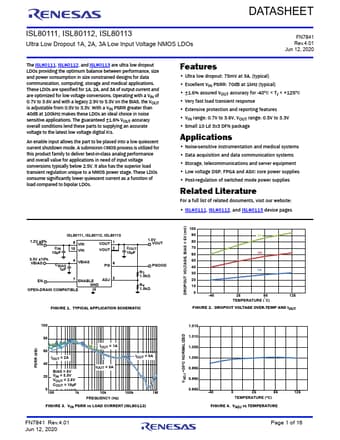

ISL80111 Datasheet Preview — Preview of ISL80111 PDF

Datasheet Details

Part number:

ISL80111

Manufacturer:

Renesas ↗

File Size:

1.07 MB

Description:

Low input voltage nmos ldos.
DATASHEET ISL80111, ISL80112, ISL80113 Ultra Low Dropout 1A, 2A, 3A Low Input Voltage NMOS LDOs FN7841 Rev.4.01 Jun 12, 2020 The ISL80111, ISL80112.
