ISL80112, ISL80111 - Low Input Voltage NMOS LDOs

ISL80112 Description

DATASHEET ISL80111, ISL80112, ISL80113 Ultra Low Dropout 1A, 2A, 3A Low Input Voltage NMOS LDOs FN7841 Rev.4.01 Jun 12, 2020 The ISL80111, ISL80112.
VOUT Output voltage pin.

ISL80112 Features

* Ultra low dropout: 75mV at 3A, (typical)
* Excellent VIN PSRR: 70dB at 1kHz (typical)
* ±1.6% assured VOUT accuracy for -40ºC < TJ < +125ºC
* Very fast load transient response
* Extensive protection and reporting features
* VIN range: 0.7V to 3.6V, V

ISL80112 Applications

* These LDOs are specified for 1A, 2A, and 3A of output current and are optimized for low voltage conversions. Operating with a VIN of 0.7V to 3.6V and with a legacy 2.9V to 5.5V on the BIAS, the VOUT is adjustable from 0.5V to 3.3V. With a VIN PSRR greater than 40dB at 100kHz makes these LDOs an ide

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL80112, ISL80111. Please refer to the document for exact specifications by model.

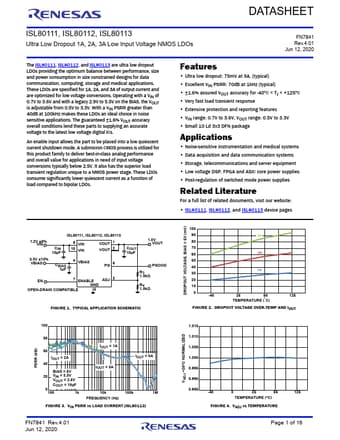

datasheet Preview Page 2 datasheet Preview Page 3
