ISL8705A, ISL8700A - Adjustable Quad Sequencer

ISL8705A Description

DATASHEET ISL8700A, ISL8701A, ISL8702A, ISL8703A, ISL8704A, ISL8705A FN6381 Rev 1.00 July 24, 2014 The ISL8700A, ISL8701A, ISL8702A, ISL8703A, ISL8.

ISL8705A Features

* with a minimum of external BOM. See Figure 1 for typical implementation. Ordering Information PART NUMBER PART TEMP. PACKAGE PKG. (Note 1) MARKING RANGE (°C) (Pb-free) DWG. # ISL8700AIBZ
* ISL 8700AIBZ -40 to +85 14 Ld SOIC M14.15 ISL8701AIBZ
* ISL 8701AIBZ -40 to +85 14 Ld SOIC M14.15

ISL8705A Applications

* Power Supply Sequencing
* System Timing Function Pinout ISL870XA (14 LD SOIC) TOP VIEW ENABLE_D 1 ENABLE_C 2 ENABLE_B 3 ENABLE_A 4 OV 5 UV 6 GND 7 14 VIN 13 TD 12 TC 11 TB 10 TIME 9 SEQ_EN (NC on ISL8700A/01A) 8 FAULT (NC on ISL8700A/01A) ISL8701A, ISL8703A, ISL8705A PINS 1-4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL8705A, ISL8700A. Please refer to the document for exact specifications by model.

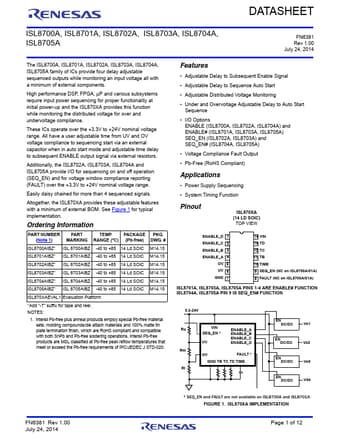

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL8705A, ISL8700A
Manufacturer
Renesas ↗
File Size
420.21 KB
Datasheet
ISL8700A-Renesas.pdf
Description
Adjustable Quad Sequencer
Note
This datasheet PDF includes multiple part numbers: ISL8705A, ISL8700A.
Please refer to the document for exact specifications by model.
