ISL91211BIK, ISL91211AIK Datasheet - Renesas

ISL91211BIK Triple/Quad Output PMIC

Datasheet ISL91211AIK, ISL91211BIK Triple/Quad Output Power Management IC for Industrial and Computing Applications The ISL91211AIK is a 4-phase, three output programmable Power Management IC (PMIC) and the ISL91211BIK is a 4-phase, four output programmable PMIC. Optimized with highly efficient synchronous buck converters for multiphase and single-phase operations, these converters deliver up to 5A per phase maximum output current. Featuring four buck controllers that can reconfigure their pow.

ISL91211BIK Features

* Triple output 2+1+1 phases (ISL91211AIK) or quad output, four single phases (ISL91211BIK)

* 2.7V to 5.5V supply voltage

* 5A per phase peak current capability

* Small solution size (for four phase design)

* High efficiency (92.2%, L = 220nH for 3.8VIN/1.8VOU

ISL91211AIK-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL91211BIK, ISL91211AIK. Please refer to the document for exact specifications by model.

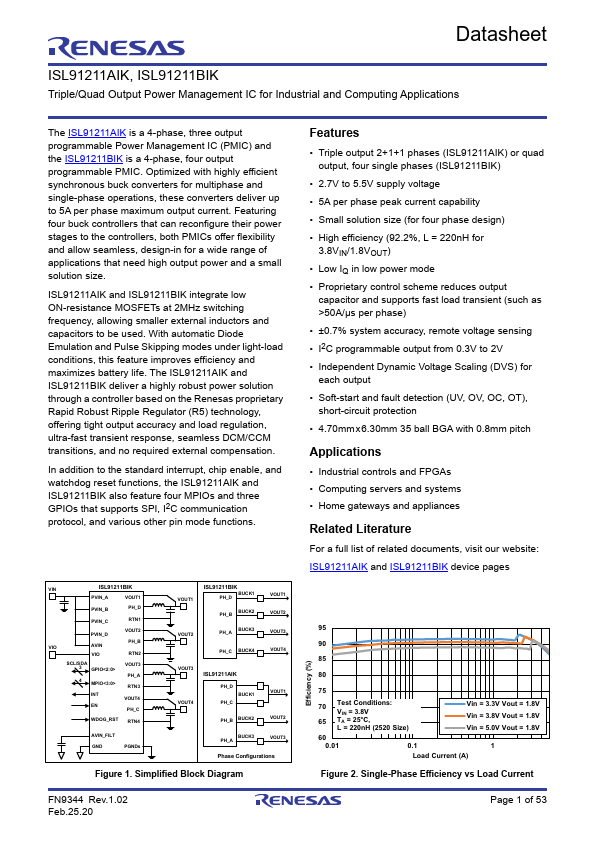

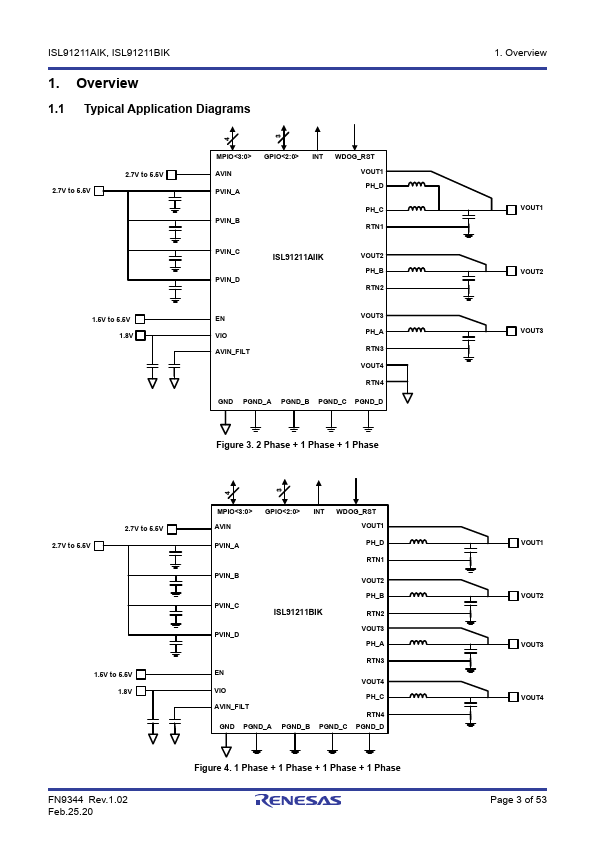

ISL91211BIK Datasheet Preview Page 2 ISL91211BIK Datasheet Preview Page 3

Datasheet Details

Part number:

ISL91211BIK, ISL91211AIK

Manufacturer:

Renesas ↗

File Size:

1.86 MB

Description:

Triple/quad output pmic.

Note:

This datasheet PDF includes multiple part numbers: ISL91211BIK, ISL91211AIK.
Please refer to the document for exact specifications by model.
