ISL9205 - Li-ion Battery Charger

Product Overview

Renesas

📥 Download Datasheet

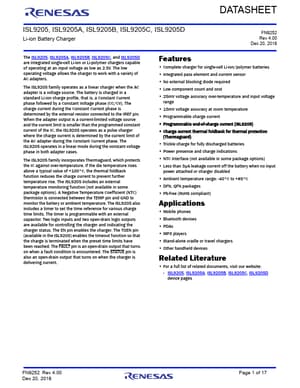

ISL9205 Li-ion Battery Charger by Renesas - Datasheet Preview — Datasheet preview – ISL9205

Datasheet Details

Part number	ISL9205
Manufacturer	Renesas
File Size	791.44 KB
Description	Li-ion Battery Charger
Datasheet	ISL9205 Datasheet
Additional preview pages of the ISL9205 datasheet.

Product details

Features

Complete charger for single-cell Li-ion/polymer batteries.
Integrated pass element and current sensor.
No external blocking diode required.
Low component count and cost.
25mV voltage accuracy over-temperature and input voltage range.
15mV voltage accuracy at room temperature.
Programmable charge current.
Programmable end-of-charge current (ISL9205).
Charge current thermal foldback for thermal protection (Thermaguar.
