2SB1705 - Low frequency amplifier

Datasheet Summary

Features

  • 1) A collector current is large. 2) VCE(sat) ≤.
  • 250mV At IC=.
  • 1.5A / IB=.
  • 30mA (3) 2.8 1.6 0~0.1 (1) (2) 0.95 0.95 1.9 2.9 0.16 Abbreviated symbol: XW (1) Base ROHM : TSMT3 2SB1705 (2) Emitter (3) Collector zAbsolute maximum ratings (Ta=25°C) Limits Symbol.
  • 15 VCBO.
  • 12 VCEO Collector-emitter voltage.
  • 6 VEBO Emitter-base voltage.
  • 3 IC Collector current.
  • 6 ICP 500 PC Power dissipation Junction temperature Tj 150 Range of stora.

📥 Download Datasheet

Datasheet preview – 2SB1705

Datasheet Details

Part number 2SB1705
Manufacturer ROHM
File Size 67.79 KB
Description Low frequency amplifier
Datasheet download datasheet 2SB1705 Datasheet
Additional preview pages of the 2SB1705 datasheet.

📁 Similar Datasheet

  • 2SB170 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1700 - PNP/NPN Epitaxial Planar Silicon Darlington Transistors (Sanyo Semicon Device)
  • 2SB171 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB172 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1721 - Silicon Power Transistors (NEC)
  • 2SB173 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1734 - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • 2SB1739 - / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB175 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB176 - Ge PNP Alloy Junction Transistor (ETC)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

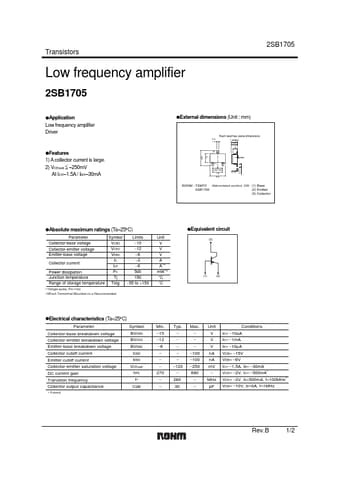

2SB1705 Transistors Low frequency amplifier 2SB1705 zApplication Low frequency amplifier Driver zExternal dimensions (Unit : mm) Each lead has same dimensions 0.4 1.0MAX 0.85 0.7 zFeatures 1) A collector current is large. 2) VCE(sat) ≤ −250mV At IC=−1.5A / IB=−30mA (3) 2.8 1.6 0~0.1 (1) (2) 0.95 0.95 1.9 2.9 0.
