2SB1706 - LOW FREQUENCY AMPLIFIER

Datasheet Summary

Features

  • 1) A collector current is large. 2) VCE(sat) ≤ -370mV At lc= -1.5A / lB= -75mA 0~0.1 (1) (2) 0.95 0.95 1.9 2.9 0.16 0.3 ~0.6 ROHM : TSMT3 2SB1706 Abbreviated symbol : XY (1) Base (2) Emitter (3) Collector zAbsolute maximum ratings (Ta=25°C) Limits Symbol.
  • 30 VCBO.
  • 30 VCEO.
  • 6 VEBO.
  • 2 IC Collector current ICP.
  • 4 500 PC Power dissipation Tj 150 Junction temperature Tstg Range of storage temperature.
  • 55 to +150 Parameter Collector-base voltag.

📥 Download Datasheet

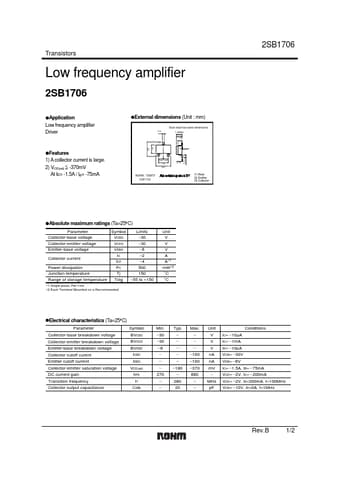

Datasheet preview – 2SB1706

Datasheet Details

Part number 2SB1706
Manufacturer ROHM
File Size 69.57 KB
Description LOW FREQUENCY AMPLIFIER
