2SB1707 - General purpose Amplifier

Datasheet Summary

Features

  • 1) Collector current is large. (4A) 2) VCE(sat)≦ -250mV 　at IC= -2A / I B= -40mA 3) Complementary NPN Types : 2SD2672 lOutline 　 SOT-346T 　 　 SC-96 　 　 　 TSMT3 　 lInner circuit Datasheet l.

📥 Download Datasheet

Datasheet preview – 2SB1707

Datasheet Details

Part number 2SB1707
Manufacturer ROHM
File Size 964.69 KB
Description General purpose Amplifier
Datasheet download datasheet 2SB1707 Datasheet
Additional preview pages of the 2SB1707 datasheet.

📁 Similar Datasheet

  • 2SB170 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1700 - PNP/NPN Epitaxial Planar Silicon Darlington Transistors (Sanyo Semicon Device)
  • 2SB171 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB172 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1721 - Silicon Power Transistors (NEC)
  • 2SB173 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB1734 - Silicon PNP epitaxial planar type Transistor (Panasonic Semiconductor)
  • 2SB1739 - / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB175 - Ge PNP Alloy Junction Transistor (ETC)
  • 2SB176 - Ge PNP Alloy Junction Transistor (ETC)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text

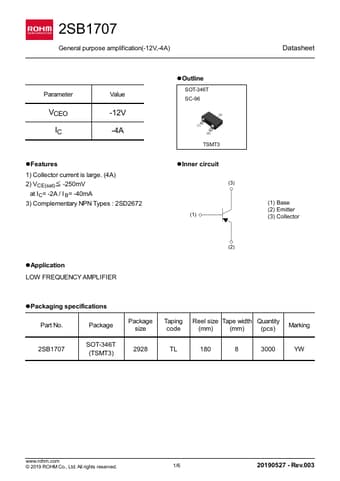

2SB1707 General purpose amplification(-12V,-4A) Parameter VCEO IC Value -12V -4A lFeatures 1) Collector current is large. (4A) 2) VCE(sat)≦ -250mV 　at IC= -2A / I B= -40mA 3) Complementary NPN Types : 2SD2672 lOutline 　 SOT-346T 　 　 SC-96 　 　 　 TSMT3 　 lInner circuit Datasheet lApplication LOW FREQUENCY AMPLIFIER lPackaging specifications Part No. Package 2SB1707 SOT-346T (TSMT3) Package size 2928 Taping code Reel size Tape width Quantity (mm) (mm) (pcs) Marking TL 180 8 3000 YW 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　 www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 1/6 20190527 - Rev.
