2SC5881 - Power transistor

2SC5881 Description

2SC5881 Transistors Power transistor (60V, 5A) 2SC5881 z.

2SC5881 Features

* 1) High speed switching. (Tf : Typ. : 25ns at IC = 5A) 2) Low saturation voltage, typically (Typ. : 200mV at IC = 3.0A, IB = 300mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SA2096 zExternal dimensions (Unit : mm) (SC-63) (1) 2.3 0.9 0.75 CP

2SC5881 Applications

* Low frequency amplifier High speed switching zStructure NPN Silicon epitaxial planar transistor zPackaging specifications Package Type Taping TL 2500 Code Basic ordering unit (pieces) 2SC5881 zAbsolute maximum ratings (Ta=25°C) Parameter Symbol VCBO VCES Limits 100 100 60 6.5 5.0 10.0 1.0 10.0

📥 Download Datasheet

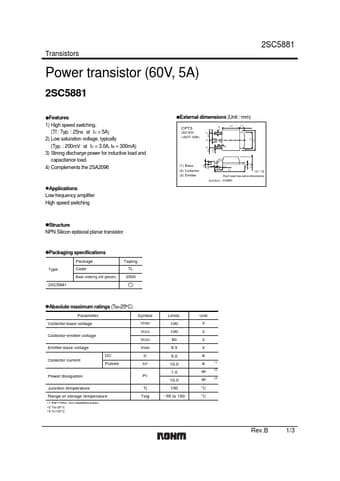

Preview of 2SC5881 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5881
Manufacturer
ROHM ↗
File Size
79.89 KB
Datasheet
2SC5881_Rohm.pdf
Description
Power transistor
