2SC5825

NPN TRANSISTOR

2SC5825 Features

* 1) High speed switching. (Tf : Typ. : 30ns at IC = 3A) 2) Low saturation voltage, typically (Typ. : 200mV at IC = 2A, IB = 0.2mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SA2073 zApplications Low frequency amplifier High speed switching zStructure NPN

2SC5825 Datasheet (174.14 KB)

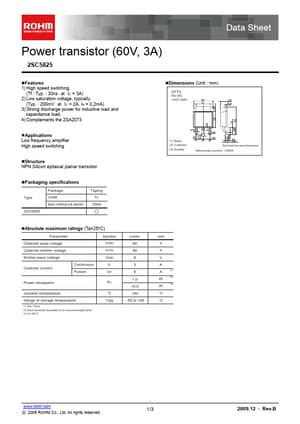

Preview of 2SC5825 PDF

Datasheet Details

Part number:

2SC5825

Manufacturer:

ROHM ↗

File Size:

174.14 KB

Description:

Npn transistor.
