2SC5802 Datasheet - SavantIC

2SC5802 Silicon NPN Power Transistors

*With TO-3P(H)IS package *High voltage;high speed *Wide area of safe operation APPLICATIONS *For high voltage color display horizontal deflection output applications www.DataSheet4U.com PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION 2SC5802 Fig.1 simplified outline (TO-3P(H)I.

2SC5802_SavantIC.pdf

Preview of 2SC5802 PDF

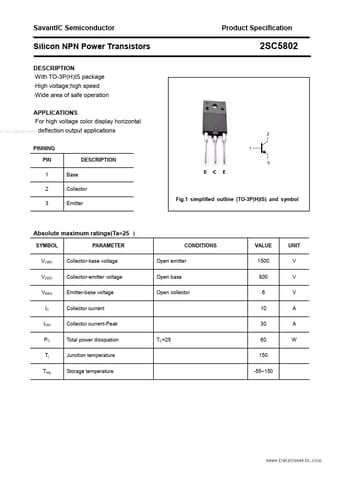

2SC5802 Datasheet Preview Page 2 2SC5802 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC5802

Manufacturer:

SavantIC

File Size:

277.13 KB

Description:

Silicon npn power transistors.
