2SC5824 - NPN TRANSISTOR

2SC5824 Description

2SC5824 Transistor Power transistor (60V, 3A) 2SC5824 !.

2SC5824 Features

* 1) High speed switching. (Tf : Typ. : 30ns at IC = 3A) 2) Low saturation voltage, typically (Typ. : 200mV at IC = 2A, IB = 200mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SA2071. !External dimensions (Units : mm) MPT3 1.0 1.5 0.4 4.0 2.5 0.5 (1) (2)

2SC5824 Applications

* NPN Silicon epitaxial planar transistor (1)Base(Gate) (2)Collector(Drain) (3)Emitter(Sourse) 0.4 Each lead has same dimensions Abbreviated symbol : UP !Structure Low frequency amplifier High speed switching !Packaging specifications Package Type Code Basic ordering unit (pieces) 2SC5824 Taping

📥 Download Datasheet

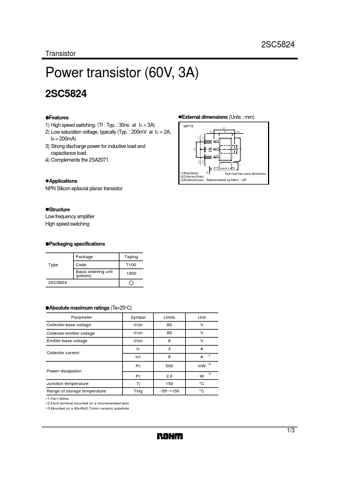

Preview of 2SC5824 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5824
Manufacturer
ROHM ↗
File Size
46.23 KB
Datasheet
2SC5824_Rohm.pdf
Description
NPN TRANSISTOR
