2SC5823

NPN Triple Diffused Planar Silicon Transistor

2SC5823 Features

* Package Dimensions unit : mm 2045B [2SC5823] 6.5 5.0 4 High breakdown voltage. High-speed switching. Wide ASO. Adoption of MBIT process. 1.5 2.3 0.5 0.85 0.7 5.5 7.0 0.8 1.6 1.2 0.6 1 2 3 7.5 0.5 1 : Base 2 : Collector 3 : Emitter 4 : Collector 2

2SC5823 Datasheet (71.61 KB)

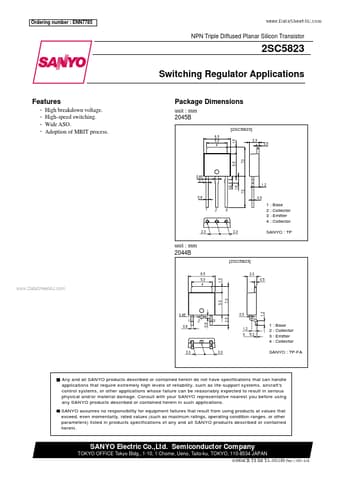

Preview of 2SC5823 PDF

Datasheet Details

Part number:

2SC5823

Manufacturer:

Sanyo Semicon Device

File Size:

71.61 KB

Description:

Npn triple diffused planar silicon transistor.
