2SD2195 - Power Transistor

Product Overview

Rohm

Part number	2SD2195
Manufacturer	ROHM
File Size	67.41 KB
Description	Power Transistor
Datasheet	2SD2195 Datasheet

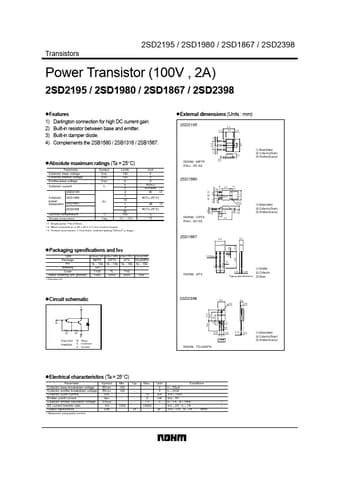

Additional preview pages of the 2SD2195 datasheet.

1) Darlington connection for high DC current gain. 2) Built-in resistor between base and emitter. 3) Built-in damper diode. 4) Complements the 2SB1580 / 2SB1316 / 2SB1567. !External dimensions (Units : mm) 2SD2195 1.0 1.5 0.4 4.0 2.5 0.5 (1) 3.0 0.5 (3) 4.5 1.6 (2) (1) Base(Gate) (2) Collector(Drain) (3) Emitter(Source) 1.5 0.4 !Absolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current 2SD2195 Collector power.
