BA41W12SAT

Dual Output Voltage Regulator with Power Saving

BA41W12SAT Features

* 1) Minimum I / O voltage differential is 0.5V or less. 2) Built-in protection circuits against overcurrent, over voltage, and overheat. 3) Available in a compact TO220FP-5 package (pins are bendable) 4) Zero power saving current. (Typ.) zAbsolute maximum ratings (Ta=25°C) Parameter Power supply vol

BA41W12SAT General Description

Pin No. 1 2 3 4 5 Pin name OUT1 VCC GND OUT2 CTL Output 1 (8V, 1A) Power supply Ground Output 2 (5V, 500mA) ON / OFF switch Function BA41W12SAT Regulator ICs zInput / output circuits OUT1, 2 VCC (2pin) CTL (5pin) 25k 1, 4pin 10.8k (1pin) 6k (4pin) 25k 2k GND (3pin) GND (3pin) zElectrical c.

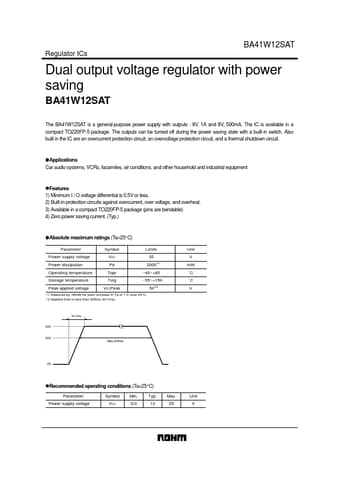

BA41W12SAT Datasheet (71.96 KB)

Preview of BA41W12SAT PDF

Datasheet Details

Part number:

BA41W12SAT

Manufacturer:

ROHM ↗

File Size:

71.96 KB

Description:

Dual output voltage regulator with power saving.
BA41W12SAT Regulator ICs Dual output voltage regulator with power saving BA41W12SAT The BA41W12SAT is a general-purpose power supply with outputs : 8.
