BA41W12ST Datasheet - Rohm

BA41W12ST - Dual Output Voltage Regulator with Power Saving

FInput / output circuits 109 Regulator ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C and VCC = 13.0V) BA41W12ST 110 Regulator ICs FMeasurement circuits BA41W12ST 111 Regulator ICs BA41W12ST 112 Regulator ICs BA41W12ST 113 Regulator ICs FApplication circuit BA41W.

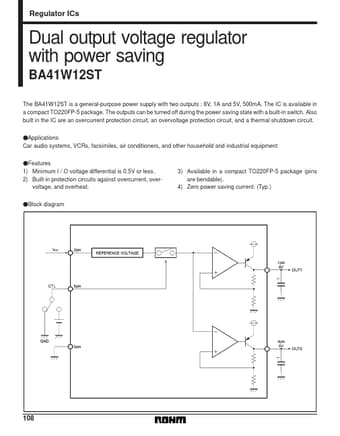

Regulator ICs Dual output voltage regulator with power saving BA41W12ST The BA41W12ST is a general-purpose power supply with two outputs : 8V, 1A and 5V, 500mA. The IC is available in a compact TO220FP-5 package. The outputs can be turned off during the power saving state with a built-in switch. Also built in the IC are an overcurrent protection circuit, an overvoltage protection circuit, and a thermal shutdown circuit. FApplications Car audio systems, VCRs, facsimiles, air conditioners, and ot.

BA41W12ST Features

* 1) Minimum I / O voltage differential is 0.5V or less. 2) Built-in protection circuits against overcurrent, overvoltage, and overheat. FBlock diagram 3) Available in a compact TO220FP-5 package (pins are bendable). 4) Zero power saving current. (Typ.) 108 Regulator ICs FAbsolute maximum ratings (

BA41W12ST_Rohm.pdf

BA41W12ST Datasheet Preview — Preview of BA41W12ST PDF

Datasheet Details

Part number:

BA41W12ST

Manufacturer:

ROHM ↗

File Size:

122.91 KB

Description:

Dual output voltage regulator with power saving.
