BA7071F Datasheet - Rohm

BA7071F SYNC separator IC with AFC

Pin No. 1 2 3 4 5 6 7 8 Pin name VIN HD - OUT GND PD - OUT HOSC - R VCC VD - OUT Sync - OUT Video input HD output GND Phase comparator output Horizontal oscillator resistor Power supply (VCC) VD output Synchronization signal output Function 2 Multimedia ICs BA7071F *Input / output circu.
Multimedia ICs SYNC separator IC with AFC BA7071F The BA7071F contains a video synchronization separation circuit, a vertical video synchronization separation circuit, a horizontal oscillation circuit, and a phase comparator. It separates and outputs the horizontal and vertical synchronization signals (HD and VD), and the composite synchronization signal (Sync-out) from input video or composite synchronization signals. The phase difference between HD and VD is guaranteed for both the rising and.

BA7071F Features

* 1) Built in AFC circuit. 2) HD and VD phase difference guaranteed. 3) Wide supply voltage range (3V to 7V). 4) Horizontal free-run frequency does not require adjustment. 5) Low external parts count. 6) SOP 8-pin package.

* Absolute maximum ratings (Ta = 25°C) Parameter Power suppl

BA7071F Datasheet (75.59 KB)

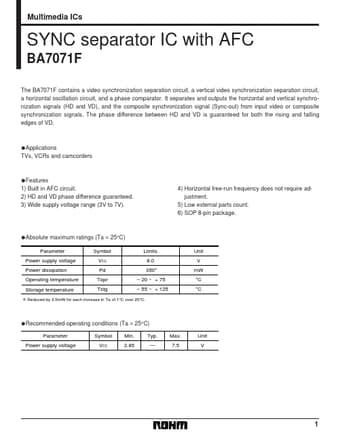

Preview of BA7071F PDF
BA7071F Datasheet Preview Page 2 BA7071F Datasheet Preview Page 3

Datasheet Details

Part number:

BA7071F

Manufacturer:

ROHM ↗

File Size:

75.59 KB

Description:

Sync separator ic with afc.
