BA7078AF

Synchronization signal processor for high definition displays

BA7078AF Features

* 1) Operates on a single 5V power supply, with low power consumption. 2) Synchronization signal existence and polarity detec-tion output. 3) Adjustable clamp pulse width, allowing for the selec-tion of front or back editing. 4) Vertical synchronization separation is based on hori-zontal frequency tra

BA7078AF General Description

Pin No. Pin name Functions Used to select whether to output the VDRV section of the HDRV output signal. High : VDRV section of HDRV is output Low : VDRV section of HDRV is not output Input either the composite synchronization signal or the horizontal synchronization signal. Input is clamped, and i.

BA7078AF Datasheet (166.21 KB)

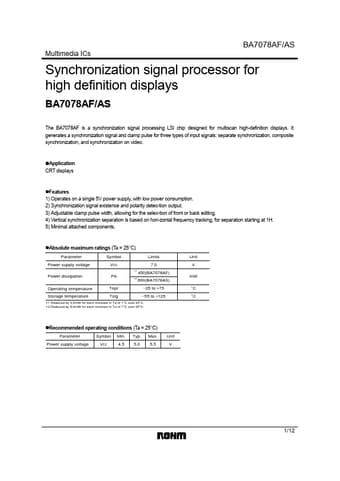

Preview of BA7078AF PDF

Datasheet Details

Part number:

BA7078AF

Manufacturer:

ROHM ↗

File Size:

166.21 KB

Description:

Synchronization signal processor for high definition displays.
BA7078AF/AS Multimedia ICs Synchronization signal processor for high definition displays BA7078AF/AS The BA7078AF is a synchronization signal process.
