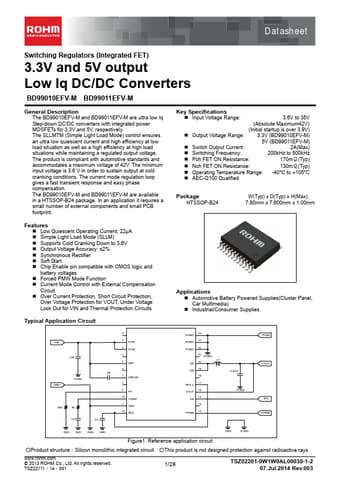

BD99010EFV-M Datasheet Preview — Preview of BD99010EFV-M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BD99010EFV-M
Manufacturer	ROHM ↗
File Size	1.36 MB
Description	Low Iq DC/DC Converters
Datasheet	BD99010EFV-M-Rohm.pdf

BD99010EFV-M Product details

Description

The BD99010EFV-M and BD99011EFV-M are ultra low Iq Step-down DC/DC converters with integrated power MOSFETs for 3.3V and 5V, respectively.

Features

Low Quiescent Operating Current: 22μA.
Simple Light Load Mode (SLLM).
Supports Cold Cranking Down to 3.6V.
Output Voltage Accuracy: ±2%.
Synchronous Rectifier.
Soft Start.
Chip Enable pin compatible with CMOS logic and battery voltages.
Forced PMW Mode Function.
Current Mode Control with External Compensation Circuit.
Over Current Protection, Short Circuit Protection, Over Voltage Protection for VOUT, Under Voltage Lock Out for VIN and Thermal P.
