BD9995NUV Datasheet - Rohm

BD9995NUV 1CH LDO Regulator

1/4 S t r u c t u r e Product M o d e l Name N a m e Silicon monolithic integrated circuits 1CH LDO Regulator of mounting on micro side for 15V input BD9995NUV (1) Input voltage: 15[V](MAX) (2) Output current: 0.6[A](MAX) (3) Low current consumption At the standby: 1[μA] or less(Standard) (4) Built-in soft start function (5) Built-in on/off function (6) Built-in output voltage change ability function (7) Over current protectionHeating protection F u n c t i o n (8) VSON008V2030 Space saving a.

BD9995NUV Datasheet (188.85 KB)

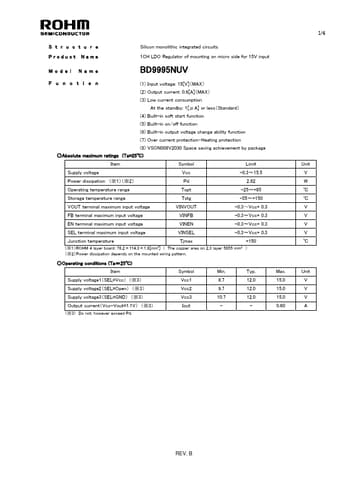

Preview of BD9995NUV PDF
BD9995NUV Datasheet Preview Page 2 BD9995NUV Datasheet Preview Page 3

Datasheet Details

Part number:

BD9995NUV

Manufacturer:

ROHM ↗

File Size:

188.85 KB

Description:

1ch ldo regulator.
