BD99011EFV-M, BD99010EFV-M, Low Iq DC/DC Converters

Datasheet Switching Regulators (Integrated FET) 3.3V and 5V output Low Iq DC/DC Converters BD99010EFV-M BD99011EFV-M General .
The BD99010EFV-M and BD99011EFV-M are ultra low Iq Step-down DC/DC converters with integrated power MOSFETs for 3.

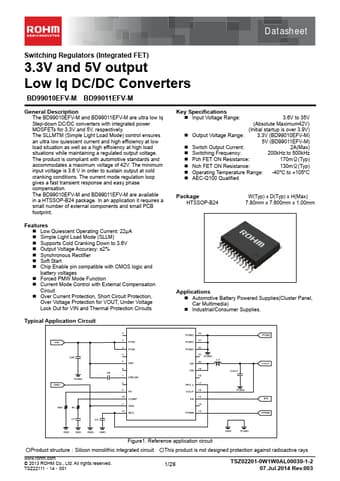

datasheet Preview Page 1 from Datasheet4u.com

BD99010EFV-M-Rohm.pdf

BD99011EFV-M Datasheet Preview — This datasheet PDF includes multiple part numbers: BD99011EFV-M, BD99010EFV-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD99011EFV-M, BD99010EFV-M

Manufacturer:

ROHM ↗

File Size:

1.36 MB

Description:

Low Iq DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: BD99011EFV-M, BD99010EFV-M.
Please refer to the document for exact specifications by model.

Features

* Low Quiescent Operating Current: 22μA
* Simple Light Load Mode (SLLM)
* Supports Cold Cranking Down to 3.6V
* Output Voltage Accuracy: ±2%
* Synchronous Rectifier
* Soft Start
* Chip Enable pin compatible with CMOS logic and battery voltages
* Forced PMW Mode Functi

Applications

* Automotive Battery Powered Supplies(Cluster Panel, Car Multimedia)
* Industrial/Consumer Supplies. Figure1. Reference application circuit ○Product structure：Silicon monolithic integrated circuit ○This product is not designed protection against radioactive rays . www. rohm. com © 2013 ROHM
