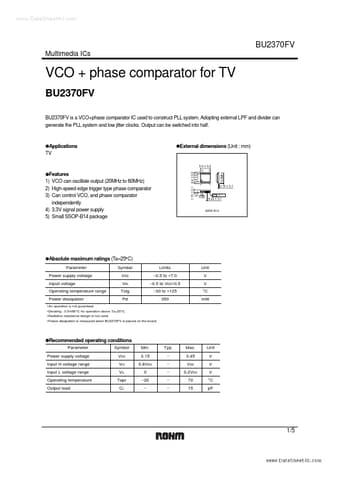

BU2370FV VCO phase comparator

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Pin name Out VDD Out GND VCO OUT VCO VDD VCO GND VCO IN FSEL1 PDE PD OUT DGND DVDD VCOE FIN-A FIN-B VDD for VCO-OUT GND for VCO-OUT VCO output VCO analog VDD VCO analog GND VCO control Pin VCO β collect H : 30[MHz/V] L : 15[MHz/V] PD control pin H : PD Disab.

BU2370FV Features

* 1) VCO can oscillate output (20MHz to 60MHz) 2) High-speed edge trigger type phase comparator 3) Can control VCO, and phase comparator independently 4) 3.3V signal power supply 5) Small SSOP-B14 package 1.15 ± 0.1 6.4 ± 0.3 4.4 ± 0.2 0.1 14 8 1 7 0.15 ± 0.1 0.65 0.1 0.22 ± 0.1 SSOP-B14 zAb
