BU2360FV, Clock Generator

Datasheet Clock Generator for Audio/Video Equipment BU2360FV General .
BU2360FV is a clock generator IC capable of generating three types of clocks - VIDEO, AUDIO and SYSTEM clocks that are necessary for DVD player system.

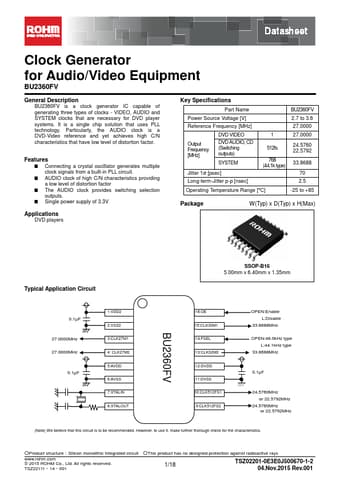

datasheet Preview Page 1 from Datasheet4u.com

BU2360FV-ROHM.pdf

BU2360FV Datasheet Preview — Preview of BU2360FV PDF

Datasheet Details

Part number:

BU2360FV

Manufacturer:

ROHM ↗

File Size:

893.82 KB

Description:

Clock Generator

Features

* Connecting a crystal oscillator generates multiple clock signals from a built-in PLL circuit.
* AUDIO clock of high C/N characteristics providing a low level of distortion factor
* The AUDIO clock provides switching selection outputs.

Applications

* DVD players Key Specifications Part Name BU2360FV Power Source Voltage [V] 2.7 to 3.6 Reference Frequency [MHz] 27.0000 Output Frequency [MHz] DVD VIDEO DVD AUDIO, CD (Switching outputs) SYSTEM Jitter 1σ [psec] 1 27.0000 512fs 768 (44.1k type) 24.5760 22.5792
