BU2363FV, Clock Generator

Datasheet Clock Generator for Audio/Video Equipment BU2363FV General .
BU2363FV is a clock generator IC capable of generating three types of clocks - VIDEO, AUDIO and SYSTEM clocks that are necessary for DVD player system.

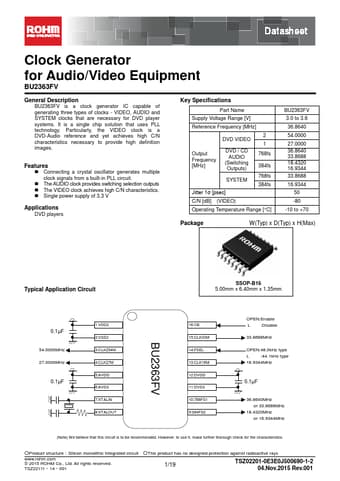

datasheet Preview Page 1 from Datasheet4u.com

BU2363FV-ROHM.pdf

BU2363FV Datasheet Preview — Preview of BU2363FV PDF

Datasheet Details

Part number:

BU2363FV

Manufacturer:

ROHM ↗

File Size:

893.85 KB

Description:

Clock Generator

Features

* Connecting a crystal oscillator generates multiple clock signals from a built-in PLL circuit.
* The AUDIO clock provides switching selection outputs
* The VIDEO clock achieves high C/N characteristics.

Applications

* DVD players Key Specifications Part Name Supply Voltage Range [V] Reference Frequency [MHz] DVD VIDEO Output Frequency [MHz] DVD / CD AUDIO (Switching Outputs) SYSTEM Jitter 1σ [psec] 2 1 768fs 384fs 768fs 384fs C/N [dB] (VIDEO) Operating Temperature Range [°C] BU2363FV 3.0 to 3.6 36.864
