BU2394KN - 3ch Clock Generator

ROHM

📥 Download Datasheet

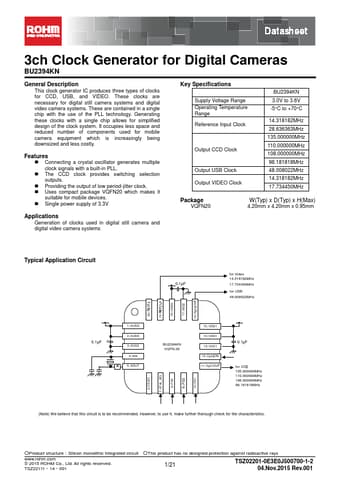

BU2394KN Datasheet Preview — Preview of BU2394KN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BU2394KN
Manufacturer	ROHM ↗
File Size	779.05 KB
Description	3ch Clock Generator
Datasheet	BU2394KN-ROHM.pdf

BU2394KN Product details

Description

This clock generator IC produces three types of clocks for CCD, USB, and VIDEO.

Features

Connecting a crystal oscillator generates multiple clock signals with a built-in PLL.
The CCD clock provides switching selection outputs.
Providing the output of low period-jitter clock.
Uses compact package VQFN20 which makes it suitable for mobile devices.
Single power supply of 3.3V.
