BU2396KN Datasheet - ROHM

BU2396KN-ROHM.pdf

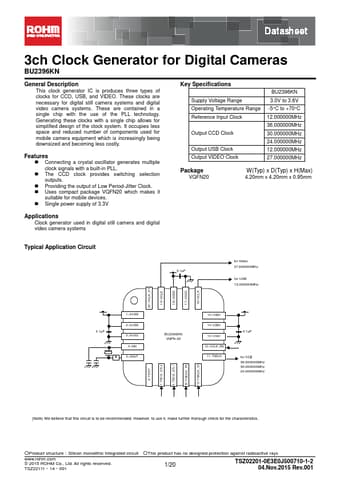

Preview of BU2396KN PDF
BU2396KN Datasheet Preview Page 2 BU2396KN Datasheet Preview Page 3

Datasheet Details

Part number:

BU2396KN

Manufacturer:

ROHM ↗

File Size:

898.67 KB

Description:

3ch clock generator.

BU2396KN, 3ch Clock Generator

This clock generator IC is produces three types of clocks for CCD, USB, and VIDEO.

These clocks are necessary for digital still camera systems and digital video camera systems.

These are contained in a single chip with the use of the PLL technology.

Generating these clocks with a single chip allows

BU2396KN Features

* Connecting a crystal oscillator generates multiple clock signals with a built-in PLL.

* The CCD clock provides switching selection outputs.

* Providing the output of Low Period-Jitter Clock.

* Uses compact package VQFN20 which makes it suitable for mobile devices.

* Single powe
