BU2362FV, BU2280FV, Clock Generator

Datasheet Clock Generator for Audio/Video Equipment BU2362FV General .
BU2362FV is a clock generator IC capable of generating three types of clocks - VIDEO, AUDIO and SYSTEM clocks that are necessary for DVD player system.

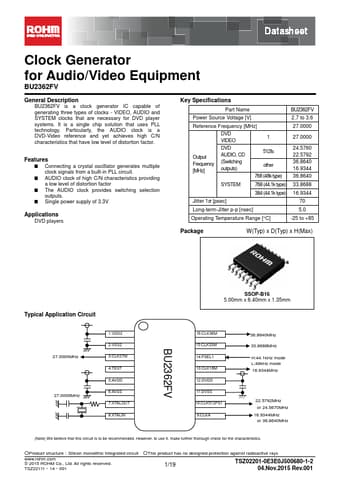

datasheet Preview Page 1 from Datasheet4u.com

BU2280FV-Rohm.pdf

BU2362FV Datasheet Preview — This datasheet PDF includes multiple part numbers: BU2362FV, BU2280FV. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BU2362FV, BU2280FV

Manufacturer:

ROHM ↗

File Size:

1.32 MB

Description:

Clock Generator

Note:

This datasheet PDF includes multiple part numbers: BU2362FV, BU2280FV.
Please refer to the document for exact specifications by model.

Features

* Connecting a crystal oscillator generates multiple clock signals from a built-in PLL circuit.
* AUDIO clock of high C/N characteristics providing a low level of distortion factor
* The AUDIO clock provides switching selection outputs.

Applications

* DVD players Key Specifications Part Name BU2362FV Power Source Voltage [V] 2.7 to 3.6 Reference Frequency [MHz] DVD VIDEO 1 Output Frequency [MHz] DVD AUDIO, CD (Switching outputs) 512fs other 768 (48k type) 27.0000 27.0000 24.5760 22.5792 36.8640 16.9344 36.86
