DTA114TUB, DTA114TM Datasheet - Rohm

DTA114TUB, DTA114TM, PNP -100mA -50V Digital Transistors

DTA114T series PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors) Datasheet Parameter VCEO IC R1 Value -50V -100mA 10kW lFea.

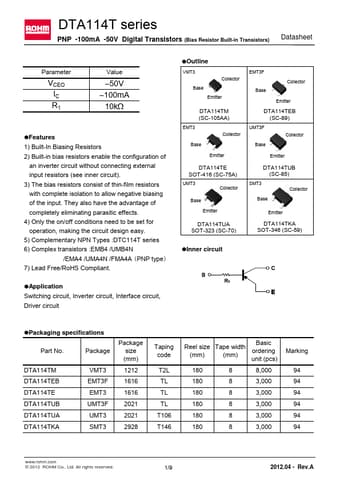

datasheet Preview Page 1 from Datasheet4u.com

DTA114TM-Rohm.pdf

DTA114TUB Datasheet Preview — This datasheet PDF includes multiple part numbers: DTA114TUB, DTA114TM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTA114TUB, DTA114TM

Manufacturer:

ROHM ↗

File Size:

487.86 KB

Description:

PNP -100mA -50V Digital Transistors

Note:

This datasheet PDF includes multiple part numbers: DTA114TUB, DTA114TM.
Please refer to the document for exact specifications by model.

Features

* 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also hav
