DTC143ZCA Digital transistors

DTC143ZCA Description

DTC143ZCA NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors) Parameter VCC IC(MAX.) R1 R2 Value 50V 100mA 4.7kΩ 47kΩ l.

DTC143ZCA Features

* 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing of the input. They also

📥 Download Datasheet

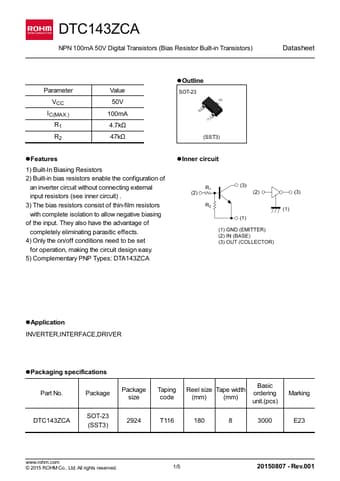

Preview of DTC143ZCA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTC143ZCA
Manufacturer
ROHM ↗
File Size
1.09 MB
Datasheet
DTC143ZCA_Rohm.pdf
Description
Digital transistors
