DTC143ZUA, DTC143ZM Datasheet - Rohm

DTC143ZUA NPN 100mA 50V Digital Transistors

DTC143ZUA Features

* 1) Built-in bias resistors .R1 = 4.7kΩ, R2 = 47kΩ. 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary

DTC143ZM-Rohm.pdf

This datasheet PDF includes multiple part numbers: DTC143ZUA, DTC143ZM. Please refer to the document for exact specifications by model.

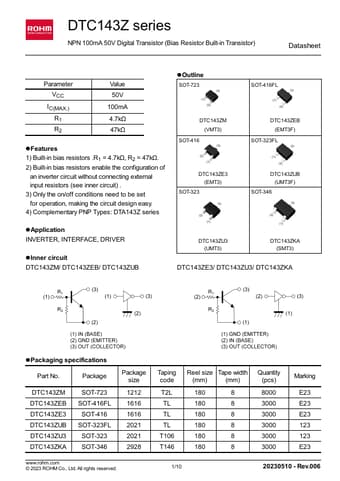

DTC143ZUA Datasheet Preview Page 2 DTC143ZUA Datasheet Preview Page 3

Datasheet Details

Part number:

DTC143ZUA, DTC143ZM

Manufacturer:

ROHM ↗

File Size:

3.19 MB

Description:

Npn 100ma 50v digital transistors.

Note:

This datasheet PDF includes multiple part numbers: DTC143ZUA, DTC143ZM.
Please refer to the document for exact specifications by model.
