RU2H50Q - N-Channel Advanced Power MOSFET

Ruichips

The RU2H50Q by Ruichips is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

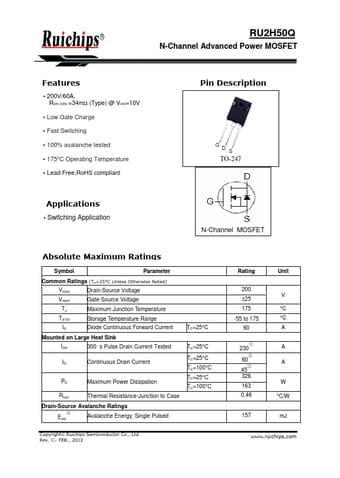

RU2H50Q N-Channel Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU2H50Q** N-Channel Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU2H50Q
Manufacturer	Ruichips
File Size	273.58 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU2H50Q-Ruichips.pdf
Additional preview pages of the RU2H50Q datasheet.

RU2H50Q Product details

Description

TO-247 Applications Switching Application N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300μs Pulse Drain Current Tested ID Continuous Drain Current PD Maximum Power Dissipation RθJC Thermal Resistance-Junction to Case Drain-Sou

Features

200V/60A, RDS (ON) =34mΩ (Type) @ VGS=10V.
Low Gate Charge.
Fast Switching.
100% avalanche tested.
175°C Operating Temperature.
Lead Free,RoHS compliant Pin.
