RU60200R Datasheet - Ruichips

N-Channel Advanced Power MOSFET

RU60200R Features

* 60V/230A, RDS (ON) =2.5mΩ (Typ.) VGS=10V

* Ultra Low On-Resistance

* Exceptional dv/dt capability

* Fast Switching and Fully Avalanche Rated

* 100% avalanche tested

* 175°C Operating Temperature

* Lead Free and Green Available Applications

RU60200R General Description

TO-220 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat S.

RU60200R Datasheet (300.71 KB)

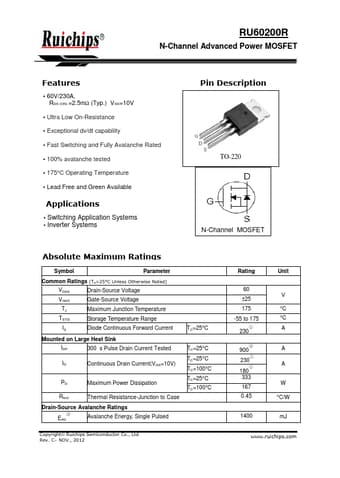

Preview of RU60200R PDF

Datasheet Details

Part number:

RU60200R

Manufacturer:

Ruichips

File Size:

300.71 KB

Description:

N-channel advanced power mosfet.
