RU602B Datasheet, Mosfet, Ruichips

RU602B Features

  • Mosfet
  • 60V/1.5A, RDS (ON) =220mΩ(Typ.)@VGS=10V
  • Low RDS (ON)
  • Super High Dense Cell Design
  • Reliable and Rugged
  • Lead Free and Green Devices Avail

PDF File Details

Part number:

RU602B

Manufacturer:

Ruichips

File Size:

307.65kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. D G S SOT23 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Vol

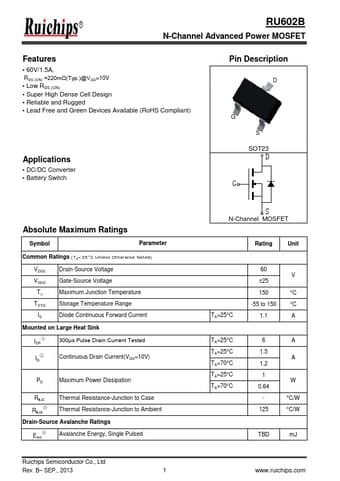

Datasheet Preview: RU602B 📥 Download PDF (307.65kb)
Page 2 of RU602B Page 3 of RU602B

RU602B Application

  • Applications
  • DC/DC Converter
  • Battery Switch Pin Description D G S SOT23 D G Absolute Maximum Ratings Symbol Parameter Commo
