SS118 Unipolar Hall-Effect Digital Switch

SS118 Description

SS118 Unipolar Hall-Effect Digital Switch .
The S118 is a unipolar Hall-effect sensor IC fabricated from bipolar technology.

SS118 Features

* 4.5V to 24V Operation -40℃ to 150℃ Superior temperature operation Bipolar technology Open-collector 25 mA output Reverse battery protection Small Size-SOT23 3L Solid-state reliability Resistant to physical stre

SS118 Applications

* Glossary of Terms MilliTesla (mT), RoHS Operating Point (B OP ) Gauss Units of magnetic flux density: 1mT = 10 Gauss Restriction of Hazardous Substances Magnetic flux density applied on the branded side of the package which turns the output driver ON (V OUT = V DSon ) Release Point (B RP ) Magn

📥 Download Datasheet

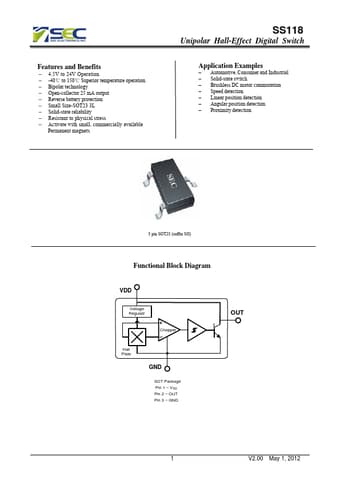

Preview of SS118 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS118
Manufacturer
SEC
File Size
274.22 KB
Datasheet
SS118_SEC.pdf
Description
Unipolar Hall-Effect Digital Switch
