SMT-200 - Phase Control Thyristor

Datasheet Summary

Features

C Hermetic metal case with ceramic insulator C Capacity of supporting high surge current C International standard case Typical.

SMT-200 Phase Control Thyristor by SEMPO ELECTRONIC - Datasheet Preview — Datasheet preview – SMT-200

Datasheet Details

Part number	SMT-200
Manufacturer	SEMPO ELECTRONIC
File Size	65.98 KB
Description	Phase Control Thyristor
Datasheet	SMT-200 Datasheet
Additional preview pages of the SMT-200 datasheet.

📁 Similar Datasheet

SMT-1020T - Buzzer (Ningbo)
SMT-12 - Resonator (Projects Unlimited)
SMT-1265 - Buzzer (Ningbo)
SMT-1265A - Buzzer (Ningbo)
SMT-1265B - Buzzer (Ningbo)
SMT-1265C - Buzzer (Ningbo)
SMT-8030 - Buzzer (Ningbo)
SMT-8030B - Buzzer (Ningbo)
SMT-8030C - Buzzer (Ningbo)
SMT-8030S - Buzzer (Ningbo)

Other Datasheets by SEMPO ELECTRONIC

SMT-25 - Phase Control Thyristor
SMT-100 - Phase Control Thyristor
SMT-16 - Phase Control Thyristor
SMT-300 - Phase Control Thyristor
SMT-320 - Phase Control Thyristor
SMT-40 - Phase Control Thyristor
SMT-50 - Phase Control Thyristor

Full PDF Text Transcription

Click to expand full text

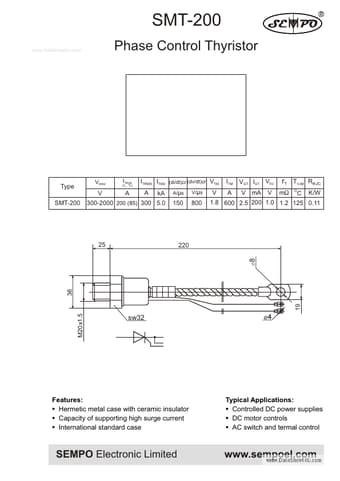

SMT-200 www.DataSheet4U.com Phase Control Thyristor Type SMT-200 VRRM ITAVM (TC, C) O ITRMS ITSM (di/dt)cr (dv/dt)cr VTM A kA A/µs V/µs ITM VGT IGT VTО A V mА V rT TVJM RthJC mS O V A V C K/W 300-2000 200 (85) 300 5.0 150 800 1.8 600 2.5 200 1.0 1.2 125 0.11 25 220 36 i8 M20x1.5 sw32 Features: C Hermetic metal case with ceramic insulator C Capacity of supporting high surge current C International standard case Typical Applications: C Controlled DC power supplies C DC motor controls C AC switch and termal control SEMPO Electronic Limited www.sempoel.

Published: Mar 6, 2009 |
